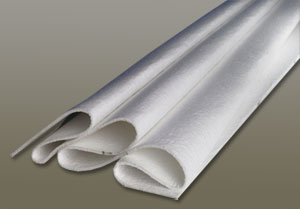

Ceramic Fibre Paper

Ceramic Fibre Paper
Availablity
Standard sizes: 500 mm width X 1000 mm length
1000 mm width X 1000 mm length

 Features
• High flexibility
• Good resistance to tearing
• Precise thickness
• Resistance to thermal shock
• Very low thermal conductivity
Description
Ceramic firber Papers are manufactured from high purity refractory fibres and designed for high temperature insulation. Advanced production techniques ensure uniform fibre distribution and close control of thickness and density.
Papers are being produced from Alumina silicate fibres with minimum addition of carefully selected Bonds, which burn out cleanly in service.
Type : Bulk Refractory fibre

Classification temperature :
HS 45 : 1260 °C
SS 800 : 1260 °C
HS 45 LB : 1260 °C

Applications
• Insulating gaskets • Expansion joints
• Die cut gaskets for domestic appliances • Gaskets , seals & parting media
• Ladle lining back up • Mould liners
• Parting media • Heat loss reduction in sub entry nozzle
• Thermal barrier for vehicles (Silencers, catalytic exhaust and heat shields)

Main Properties
Physical Properties STD Paper STD Paper
Classification temperature°C 1260 0C 1400 0C
Chemical composition (%)
Al2O3 > 42 > 32
SiO2 < 56 < 52
ZrO2 - < 19.5
Loss on ignition % < 10 < 10
Density (Nominal) kg/m3 150 150
Tensile strength (Kgf/m2) 9000 9000
Linear shrinkage % - 24 hrs (Max) 2.0 (At 11000C) 2.0 (At 12000C)
Availability & Packaging - 1000 mm width x 1000 mm length Thickness (mm)
2 X X
3 X X
4 X X
5 X X
6 X X
8 X X
10 X X
12 X X
All above products are subjected to standard tolerances. The values given herein are typical values obtained in accordance with accepted test methods and subject to normal manufacturing variations. They are supplied as a technical service and are subject to change without notice. Therefore, the data contained herein should not be used for specification purposes.
